    联组三角带,窄形V带
    产品名称:

    联组三角带,窄形V带

    产品描述:

    窄形V带采用橡胶氯丁化,强力层聚酯化,胶带强度高,使用伸长小.联组三角带由几条相同的普通V带或窄V带,连接层等部件组成.具有良好的整体性,各条带受力均匀.

    详细信息

















    联组V带(联组三角带)、防滑联组带:能适应带轮轮槽几何形状与尺寸误差的变化,赋予横向刚度和稳定性,不易抖动、拍击和翻带;受力均匀,承载能力高,适用于大功率传动。
    生产长度(mm):
    RA (1800-5000) RB (1800-8000)
    RC (1800-10000) RD (3000-14000) R3V (1800-5000)
    R5V (1800-8000) R8V (3000-10000)
    A special layer. They are produced in A,B,C,D, profiles and 3V,5V and 8V that allowequa lized wear out in the system and reduction of vibration.A (60 to 237inches);B (60 to 315 inches); C (76 to 420 inches) ; D (90 to 600 inches); 3V (60 to140 inches); 5V (67 to 335 inches) 8V(100 to 500 inches).Lengths that are not in our inventory can be made to order.

    联组三角带,窄形V带

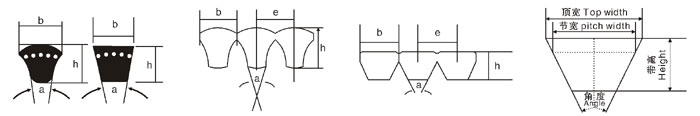

    窄V带            联组窄V带           联组普通V带

    联组三角带,窄形V带

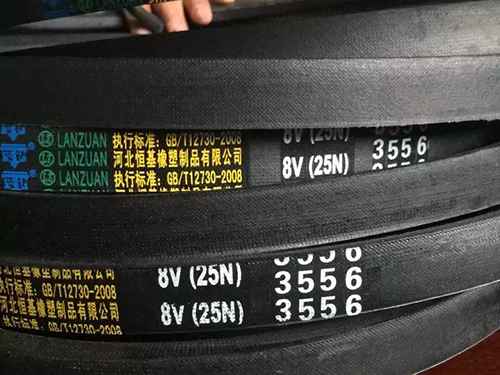

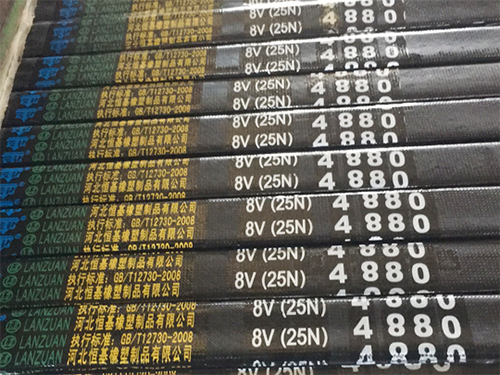

    窄V带特点(Character)
    窄形V带采用橡胶氯丁化,强力层聚酯化;胶带强度高,使用伸长小,耐哟油、耐磨、耐老化、变形小,打滑系数低,负载能力强,传递效率高,使用寿命长。
    Made of neoprene , polyester tensil lensil layer high strength , low tensil distortion , low oil-durable attrition, durable aging, low prstortion, skid mipvlus, high coaping ability, high tranfer efficiency.
    窄V带品种规格:


     项目/截型
    基准制(SP系列即公制)
    有效制(ZV系列即英制)
    SPZ
    SPA
    SPB
    SPC
    3V/9N
    5V/15N
    8V/25N
    顶宽(b)(mm)
    10.0
    13.0
    17.0
    22.0
    9.0
    15.0
    25.0
    带高(h)(mm)
    8.0
    10.0
    14.0
    18.0
    8.0
    13.0
    23.0
    节宽(b)(mm)
    8.0
    11.0
    14.0
    19.0



    楔角(a)
    40°
    40°
    40°
    40°
    40°
    40°
    40°
    长度换算
    Lw=Li+37
    Lw=Li+45
    Lw=Li+66
    Lw=Li+83



    可供规格内周长
    mm
    635-3556
    600-6350
    800-8890
    1524-12700
    635-140
    1270-8890
    1524-12700
    英寸
    25-140
    23-250
    31-350
    60-500
    25-140
    50-350
    60-500


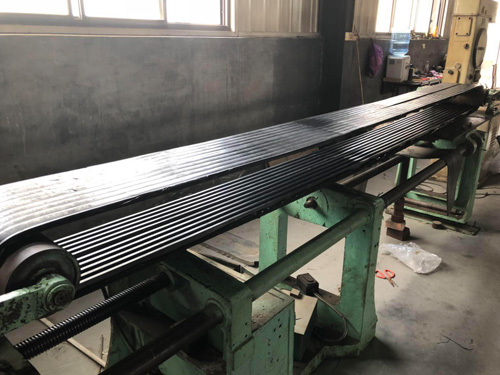

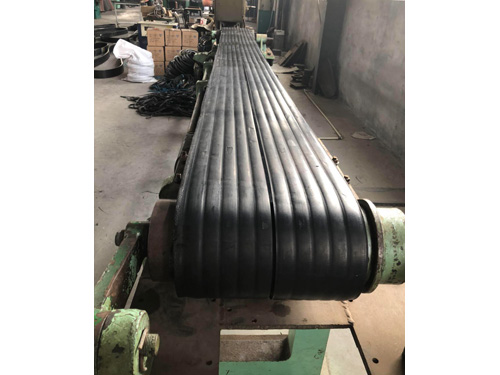

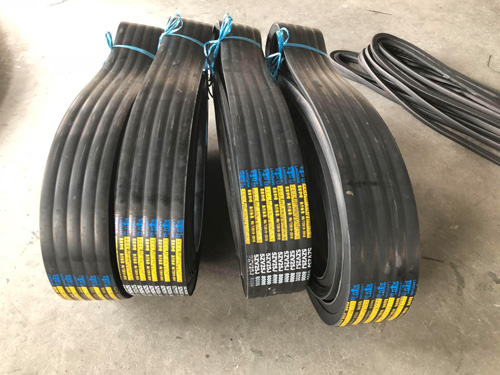

    联组三角带特点(Character)
    联组三角带由几条相同的普通V带或窄V带、连接层等部件组成。具有良好的整体性,各条带受力均匀,运行平稳、承载能力强、寿命较长,适合于大功率转动。
    Combined v-belt is made of several classical cbelts. narrow v-belt and binding layers etc, excellentholistic, eachbelt endures symietrical force. working placiditity, high loading ability, long applied period fit for high power transportion inner.
    联组V带主要规格(Transect)



    品种
    截型
    顶宽b
    (mm)
    中心距e
    (mm)
    带高h
    (mm)
    楔角
    a
    多联组根数
    可供规格内周长
    英寸
    mm
    联组普通V带
    AJ
    13.6
    15.6
    10.0
    40°
    20
    25-150
    635-3810
    BJ
    17.0
    19.0
    13.0
    40°
    12
    45-280
    1145-7100
    CJ
    22.4
    25.5
    16.0
    40°
    12
    70-450
    1778-11430
    DJ
    32.8
    37.0
    21.5
    40°
    10
    100-450
    2540-13720

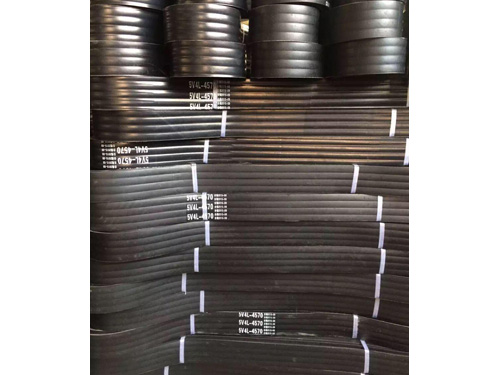

    联组窄V带
    9J(3v)
    9.5
    10.3
    10.0
    40°
    20
    25-140
    635-3556
    15J(5v)
    15.9
    17.5
    15.5
    40°
    20
    50-355
    1270-9000
    20J
    20.9
    24.4
    22.0
    40°
    12
    78-425
    2000-10800
    25J(8v)
    25.4
    28.6
    25.0
    40°
    12
    75-500
    1900-12700

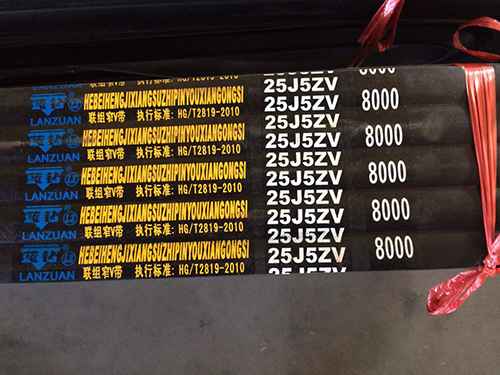

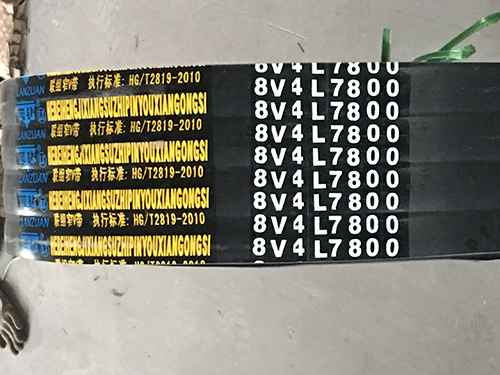

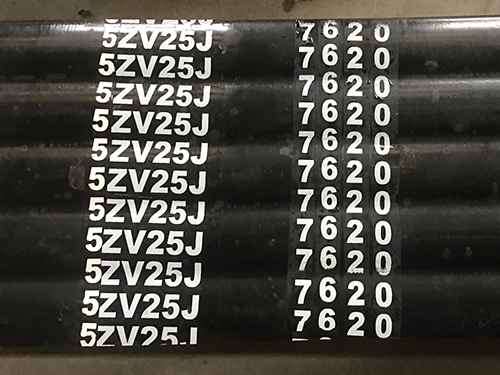

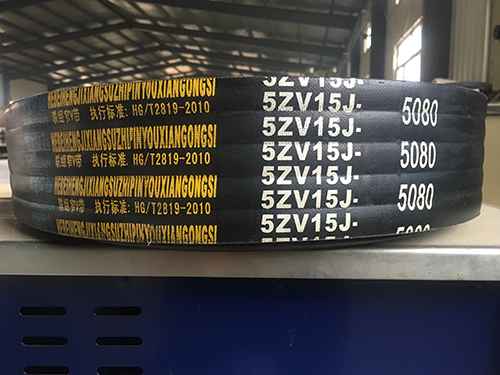

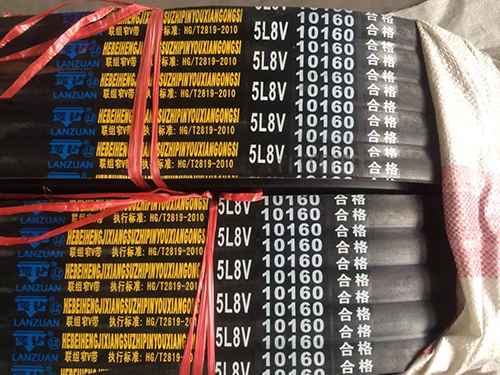

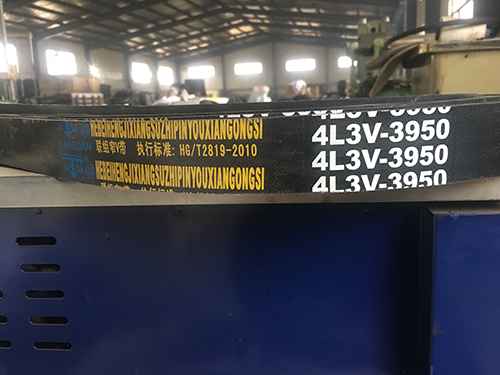

    标记方法:15J(4) 2286,即截型15J、4联组、内周长度2286mm的联组窄V带。
    Mark:15J(4) 2286 is of 15J transte, 4 joint, 2286mm inner-perimeter.
